分切机

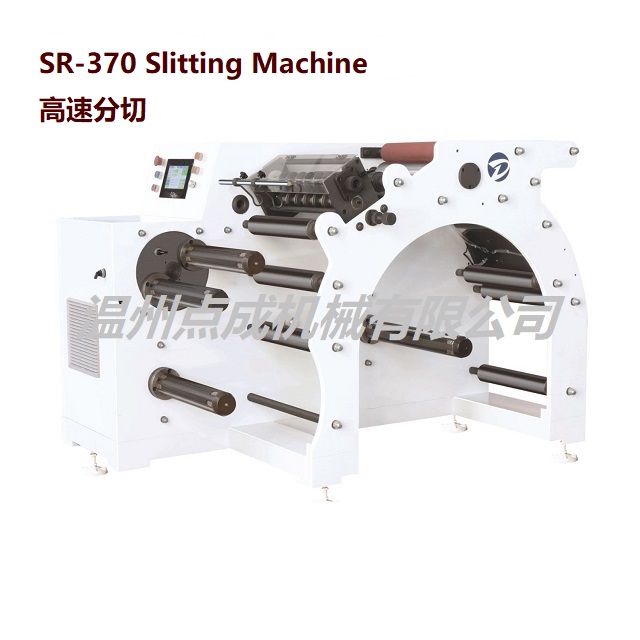

SR-370高速分切
性能特点 Parameter
SR-370 型分切机是自主研发的高效率窄幅标签分切机。
SR-370 High speed slitting machine is new developed which mainly for narrow web label slitting.
双收卷轴旋转换位装置，预备轴准备大大提高了生产效率。
Turret rewinding unit, it saves time for change the finish rolls.
支持多种规格气胀轴随意互换，支持计米、计数，缺料停机。
It's suitable for different kinds size of rewinding core, with meter counter,number counter and less material stop machine function.
计数参数 Techincal Parameter
型号Model | 370 | 480 | 550 |
分切速度Speed | 220m/min | 220m/min | 220m/min |
大进纸宽度Max unwind width | 370mm | 480mm | 550mm |
大放卷直径Max unwind dia. | 800mm | 800mm | 800mm |
大上收卷直径Max up rewind dia. | 200mm | 200mm | 200mm |
大下收卷直径Max down rewind dia. | 700mm | 700mm | 700mm |
平切刀Razor knife | Optional | Optional | Optional |
圆切刀（上、下）Rotary knife(up/down) | 6 sets | 6 sets | 6 sets |
分切精度Slitting precision | ±0.1mm | ±0.1mm | ±0.1mm |
总功率Total power | 5kw | 7kw | 9kw |
外形尺寸dimension | 1700*1200*1300mm | 1700*1310*1300mm | 1700*1380*1300mm |
整机重量Weight （L*W*H) | 750kgs | 900kgs | 1100kgs |
