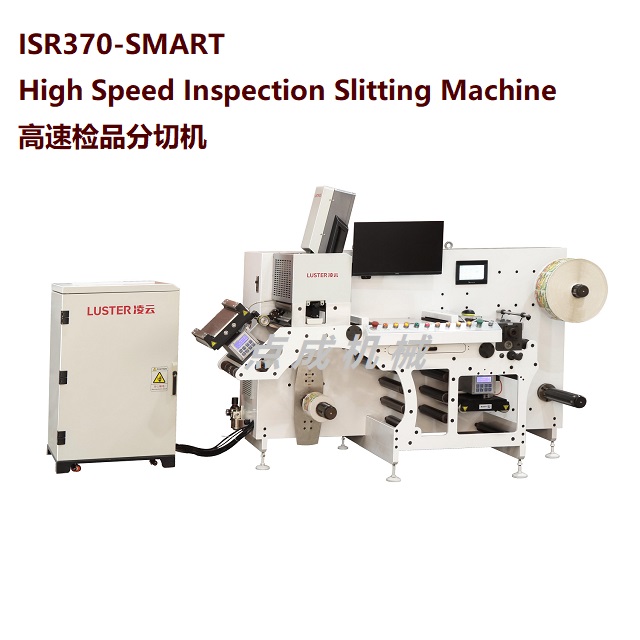

ISR370-SMART 高速检品分切机
性能特点 Character
自主研发高效率检测平台，全伺服收放卷锥度张力系统， 品牌纠偏系统，进口触摸屏控制系统，可针对纸张不干胶、PVC/PE、PP等多种材料。
Inspection platform system is driven by full servo motor system, both rewind and unwind with taper tension control system, international web guide system, PLC control system, it is suitable for paper, adhesive label, PVC, PE and PP etc.
技术参数 Technical Parameters
型号Model | 370 | 480 | 550 |
分切速度Slitting speed | 220m/min | 220m/min | 220m/min |
大进纸宽度Max width | 370mm | 480mm | 550mm |
有效检测宽度Effective detection width | 350mm | 460mm | 530mm |
大放卷直径Max unwind dia. | 700mm | 700mm | 700mm |
大上收卷直径Max up rewind dia. | 600mm | 600mm | 600mm |
大下收卷直径Max down rewind dia. | 700mm | 700mm | 700mm |
小分切宽度Min slitting width | 15mm | 15mm | 15mm |
平切刀Razor knife | 选配/Optional | 选配/Optional | 选配/Optional |
气压要求Air source | 0.8mpa | 0.8mpa | 0.8mpa |
总功率Total power | 8kw | 10kw | 12kw |
外形尺寸Dimension(L*M*H) | 2350*1250*1200mm | 2350*1330*1200mm | 2350*1400*1200mm |
整机重量Weight | 1.8T | 2T | 2.2T |
