品检断张平台

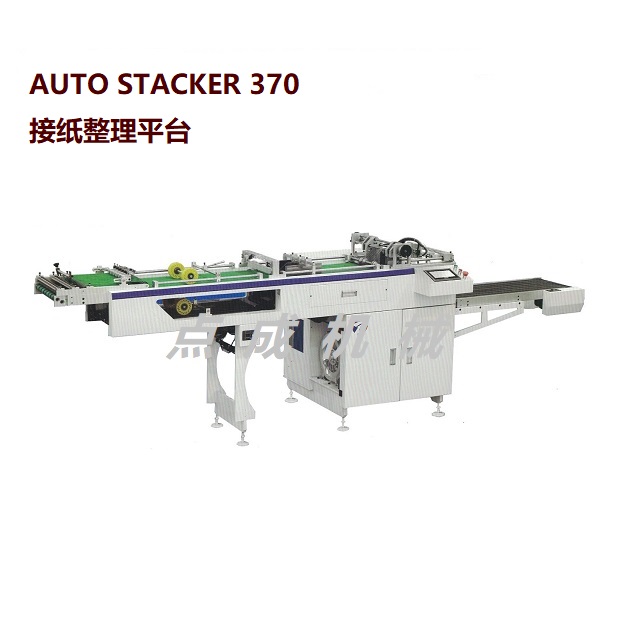

AUTO STACKER 370接纸整理平台
性能特点 Character
此机型是本公司 新研发款机型,具有单张产品的自动剔废,分批计数堆叠功能。自动剔废功能接收品检机信号,实现自动剔废功能,提高工作效率,可适用于模内标、卡纸、纸张、薄膜等材料。
This madel is the latest model of our company, which is used foe automatic waste discharge, batch counting and stacking of sheet products. The automatic waste discharge unit receives signal from the inspection system, realizea the automatic waste discharge function, so that improves the efficiency. And it can be applide to IML, card paper, paper, film etc.
计数参数 Technical Paremeters
模型 Model | 370 |
大接纸宽度 Max. Web | 370mm |
高机械速度 Max. Speed | 100m/min |
接纸长度范围 Length Range | 100-450mm |
堆垛高度 Stacking Height | 100mm |
电源电压 Voltage | 380V.50HZ |
外形尺寸 Dimension(L*W*H) | 3600mm*1100mm*1100mm |
总功率 Power | 5kw |
整机重量 Weight | 400kg |
