切管机

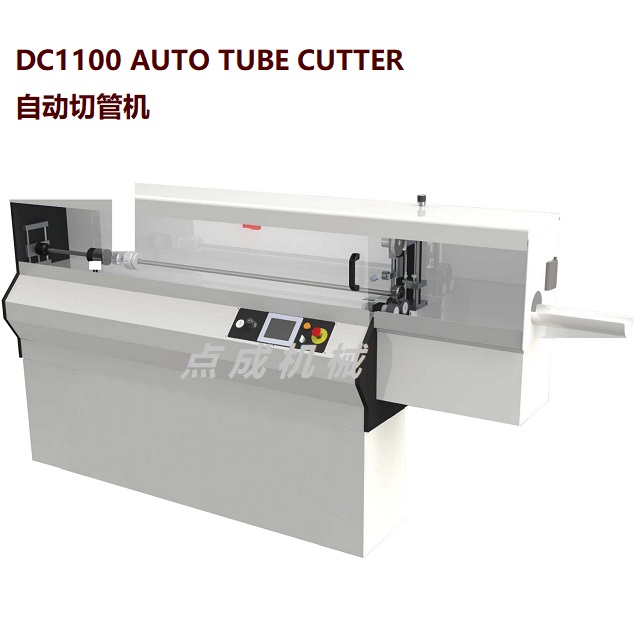

DC1100 自动切管机
该机是标签设备配套产品。适用于纸管切割、胶布切割。可分切大小不同内径的纸管及塑料管。
This machie is mainly for cut paper tube and tape ,It's suitable different inner core paper tube and plastic tube
主要技术参数 Main Parameter
| 型号Model | 1100 |
| 切管速度Max. core cutting speed | 50-80times/min |
| 纸管直径Paper core diameter | 12.7-152.4mm(3 inch-6 inch) |
| 纸管 大厚度Paper core max. thickness | 15mm |
| 电压Voltage | 220v |
| 功率Power | 3kw |
| 外形尺寸Overall size | 2400*600*1400mm |
