印后组合加工系统

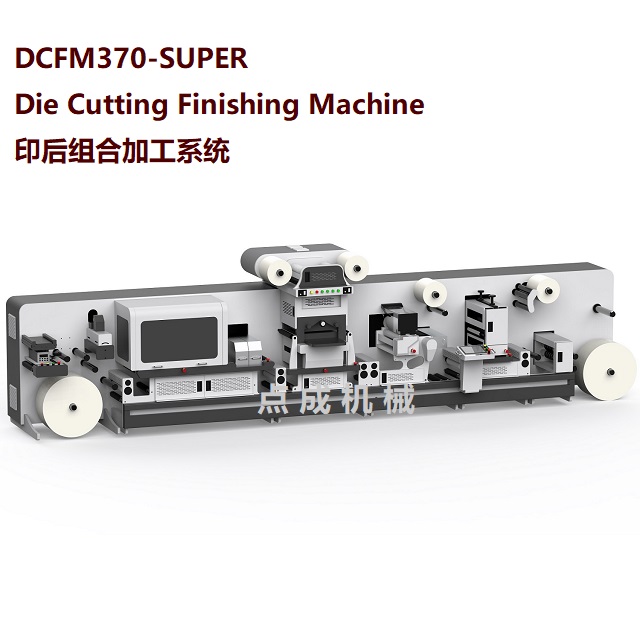

DCFM370-SUPER 印后组合加工系统

产品详细介绍

性能特点 Character

DCFM370-SUPER 系列根据模块化设计,印后加工工艺可以根据客户需求订制,本机可实现平丝印、平热烫、间歇柔印、间歇圆模切、分切工艺,采用全伺服驱动,操作更智能,更便捷。标签组合加工,缩短加工时间,减少浪费,提高生产竞争力。

DCFM370-SUPER series is designed as module unit, it can be customized as per customer's requirement. This machine can be with flat bed screen printing, flat bed hot stamping, semi rotary flexo, semi rotary die cutting, slitting unit. It is driven by full servo, easy and small for operation. It can save time and material , improve the competitiveness of production.


实现

●模块最大化                   ●Maximum modularity

●自动化生产                   ●Automated production

●开放式的热烫金和丝印平台     ●Open platform for hot foil and screen

●低能耗的生产运行             ●Low energy consumption

●极低的生产浪费               ●Low level of waste

●支持在线服务和故障诊断       ●Online support and remote diagnostics

●满足工业4.0 的需求           ●Industry 4.0 ready


配置

◆模块化设计,定制需求更容易         ◆ Platform fully modular for added flexibility

◆放料自动提升(选配)               ◆ Jumbo roll unwinder with roll lift(option)

◆平丝网印刷                         ◆ Screen print station

◆平模切,可选配热烫                 ◆ Flat bed die cutting station wiyh hot foil option

◆全轮转/间歇柔印                    ◆ Full/semi rotary flexo station

◆全轮转/间歇模切                    ◆ Full/semi rotary die cutting station

◆凹印单元(选配)                   ◆ Rotogravure printing option

◆分切单元,可选配自动调刀装置       ◆ Station with knife auto setup as option

◆可选配旋转轴收料                   ◆ Turret rewinder option

◆可选配自动背切功能                 ◆ Automatically setting back scoring knives option


技术参数 Technical Parameters

型号 Model370480
最大进纸宽度 Max. web width370mm370mm
材料厚度 Thickness of material40-250um40-250um
最大放卷直径 Max. unwind dia,800mm800mm
最大收卷直径 Max. rewind dia.800mm800mm
丝网印刷长度 Screen printing length50-660mm50-660mm
丝网印刷速度 Screen printing speed100times/min100times/min
烫金长度范围 Hot stamping length50-350mm50-350mm

模切最高机械速度

Flat bed die cutting max. speed

400times/min400times/min

柔版印刷周长

Flexo printing repeat length

50-444.5mm(Max. 666.75mm as optional)50-444.5mm(Max. 666.75mm as optional)
柔版印刷速度 Flexo printing speed
300times/min300times/min

间歇模切周长

Full/semi rotary die cutting repeat length

50-444.5mm(Max. 666.75mm as optional)50-444.5mm(Max. 666.75mm as optional)

间歇模切速度

Full/semi rotary die cutting speed

300times/min300times/min
自动分切最小分切宽度Auto slitting min.width20mm20mm
分切刀数量 Slitting knife8 sets8 sets
