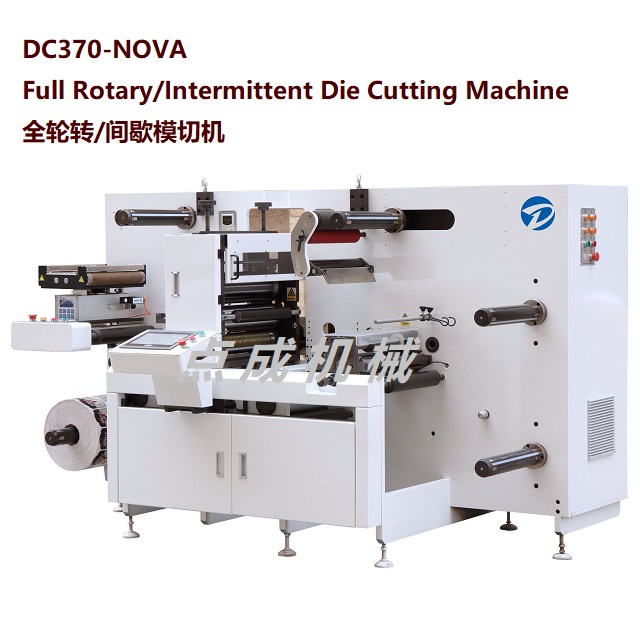

DC370-NOVA 全轮转/间歇式模切机
性能特点 Character
此设备是点成机械 新研发产品,配备模切、间歇模切和分切单元,采用先进的伺服控制系统,人性化的操作界面,大大提高产品品质和生产效率;具备 新的全轮转和间歇可互换式技术;适合数码印刷标签短单及中长订单的模切后加工。
This equipment is the latest research and development product, equipped with die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
技术参数 Technical Parameters
型号 Model | 370 | 480 |
高机械速度 Max. speed | 全轮转/Rotary 120m/min 间歇/Intermittent 300times/min | 全轮转/Rotary 120m/min 间歇/Intermittent 300times/min |
大进纸宽度 width | 370mm | 480mm |
模切周长 Repeat | 50-444.5mm | 50-444.5mm |
模切精度 Precision | ±0.15mm | ±0.15mm |
大放卷直径 Max. unwind dia. | 800mm | 800mm |
大上旋转收卷直径 Max.up rewind dia. | 450mm | 450mm |
大下收卷直径 Max.down rewind dia. | 800mm | 800mm |
收卷纸芯大小 Rewind inner core size | 1-6寸均可(标配3寸) 1-6 inch(standard in 3 inch ) | 1-6寸均可(标配3寸) 1-6 inch(standard in 3 inch ) |
材料厚度 Thickness of material | 20-300um | 20-300um |
气源要求 Air source | 0.8Mpa | 0.8Mpa |
