模切机

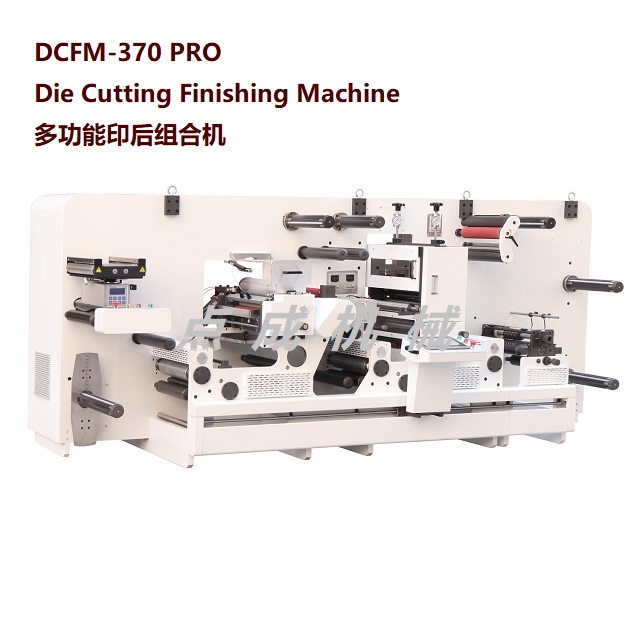

印后组合加工系统

产品详细介绍

性能特点 Character

此设备是点成机械最新研发产品,配备全轮转柔印单元,间歇模切和切张等单元,于柔印、冷烫、上光、覆膜、模切、切张、分切等功能于一体;采用先进的伺服控制系统,人性化的操作界面,大大提高产品品质和生产效率;具备最新的全轮转和间歇可互换式技术;适合数码印刷标签短单及中长订单的模切后加工。

This equipment is the latest research and development product of point machinery, equipped with full-wheel-turn/intermittent softening unit, full-wheel-turn/intermittent die-cutting unit, split cutting unit, etc., in flexo printing, cold stamping, light, laminating, die-cutting, slitting, sheeting, etc.. Adopt advanced servo control system, humanized operation interface, greatly improve product quality and production efficiency. Availability of the latest turnround and intermittent interchangeable technologies. Suitable for digital printing label short order and medium and long order die-processing.


技术参数 Technical Parameters

型号Model

DCMF-370

最高运行速度Max,.Running Speed

全轮转 Rotary 120m/min;

间歇intermittent300times/min

最大进纸宽度Max. Web Width

370mm

印刷周长Printing Repeat

200mm-450mm

二次印刷精度Reprinting Precision

± 0.15mm

模切周长Die Cutting Repeat

100mm-420mm

模切精度Die Cutting Precision

± 0.15mm

最大放卷直径Max. Unwinding Dia.

800mm

最大上收卷直径Max. Up Rewinding Dia.

450mm

最大下收卷直径Max. Down Rewinding Dia.

800mm

收卷纸芯大小Rewind Inner Core Size

1寸到6寸均可(标配3寸)

1inch-6inch (standard in 3inch)

材料厚度Thickness Of Material

20um-300um

气压要求Air Source

0.8Mpa
