模切机

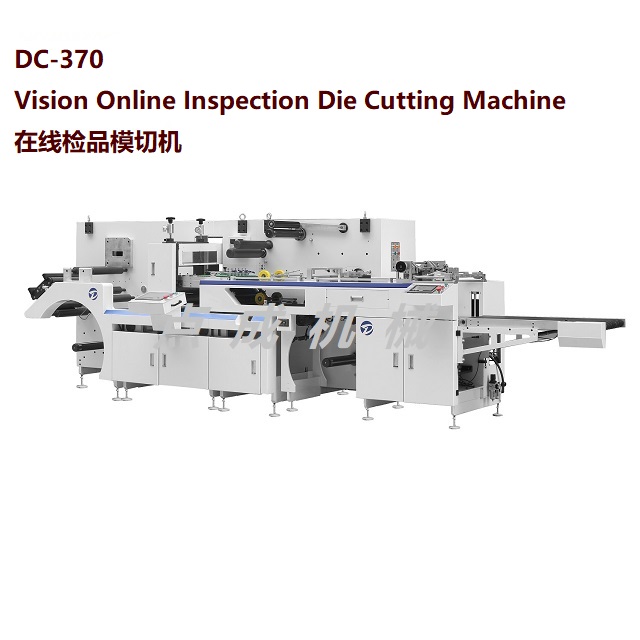

DC-370 在线检品模切机
性能特点 Character
具有自主研发的高效率标签模切机,具有检测、模切、剔废、堆垛收集功能,整机伺服驱动,定位精度高,质量稳定,可适用于不干胶、卡纸、纸张、薄膜等材料。可扩展覆膜、上光、分切、烫金功能,提供 优化的标签加工解决方案。
Independent developed efficient label die cutting machine, with inspection, die cutting, waste discharging, stacking collecting function. It’s adopt servo drive, high positioning accuracy and stable quality. Can be applied to adhesive, card paper,paper,film etc.It’s can expandable lamination, vanish, slitting, and stamping, provide optimum label processing solutions for you.
技术参数 Technical Parameters
型号 Model | 370 | 480 |
大接纸宽度 Max. Web | 370mm | 480mm |
高全轮转速度 Max. Rotary Speed | 120m/min | 120m/min |
高间歇速度 Max. Intermittent Speed | 300times/min | 300times/min |
模切长度范围 Die Cutting Length Range | 50-444.5mm | 50-444.5mm |
模切精度 Die Cutting Precision | ±0.15mm | ±0.15mm |
膜内标精度 In Molding Label Precision | ±0.25mm | ±0.25mm |
收集堆垛高度 Collect Stack Height | 100mm | 100mm |
总功率 Power | 15KW | 17KW |
电源电压 Voltage | 380V/50HZ | 380V/50HZ |
外形尺寸 Dimension(L*W*H) | 5400*1600*1600mm | 5400*1700*1600mm |
