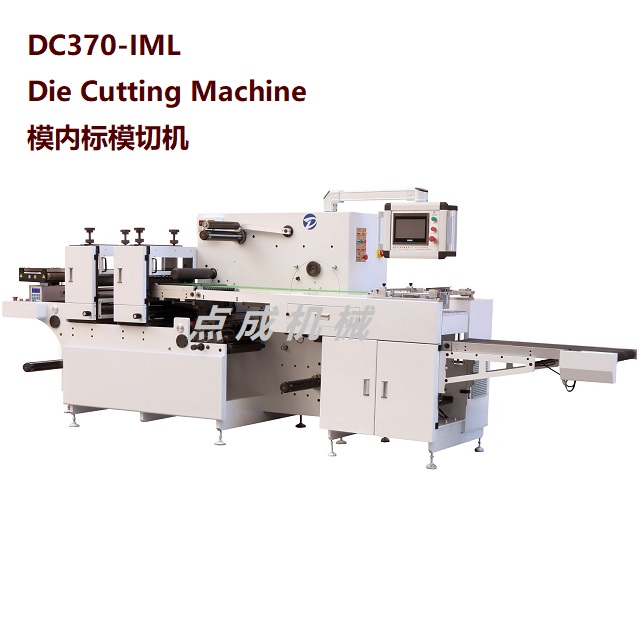

DC370-IML 模内标模切机
性能特点 Character
DC370-IML采用圆模切加工技术,可实现间歇和全轮转互换工艺,满足不同订单需求,降低工厂运营成本,收料采用自动堆垛方式,收料平整,技术准确。
DC370-IML adopt rotary die cutting process technology, can run both semi rotary and full rotary, meet different order requirement. Machine is with auto stacker for finish product to save labor cost.
技术参数 Technical Parameters
型号 Model | 370 | 480 |
高机械速度 Max. speed | 全轮转/Rotary 120m/min 间歇/Intermittent 300times/min | 全轮转/Rotary 120m/min 间歇/Intermittent 300times/min |
大进纸宽度 width | 370mm | 480mm |
模切周长 Repeat | 100-420mm | 100-420mm |
堆垛高度Stacker height | 100mm | 100mm |
模切精度 Precision | ±0.15mm | ±0.15mm |
大放卷直径 Max. unwind dia. | 800mm | 800mm |
大下收卷直径 Max.down rewind dia. | 800mm | 800mm |
收卷纸芯大小 Rewind inner core size | 1-6寸均可(标配3寸) 1-6 inch(standard in 3 inch ) | 1-6寸均可(标配3寸) 1-6 inch(standard in 3 inch ) |
材料厚度 Thickness of material | 20-300um | 20-300um |
气源要求 Air source | 0.8Mpa | 0.8Mpa |
